Samsung GEO WindFree 5kW Cool / 6kW Heat Inverter Split Air Conditioner AR9500

Samsung GEO WindFree AR9500 5kW Cool / 6kW Heat Inverter Split Air Conditioner AR18TXEABWKNSA

by Samsung
Sold out
$1,699.00
$1,699.00 - $1,699.00
$1,699.00
$1,299.00
$1,299.00 - $1,299.00
$1,299.00
Model: AR18TXEABWKNSA
Availability:
Out of stock

Installation: Click to see details

Delivery time & fee

  • Sydney: 3-4 business days; Free.
  • Sydney surrounds: 5-7 business days; Flat rate.
  • Don't ship to: VIC, QLD, NT, SA, WA, TAS.

Overview

Stay feeling comfortably cool with Wind-FreeTM Cooling. It is designed to cool gently and quietly to minimise the unpleasant feeling of cold wind on your skin, as it disperses air through 23,000 micro air holes. It creates a ‘Still Air’ environment with very low air speed and minimal noise. Its advanced airflow structure also means it cools a wider and larger area more evenly. When operating in Wind-FreeTM Cooling it consumes approximately 77% less energy than in Fast Cooling mode.


Model: AR18TXEABWKNSA / AR18TXEABWKXSA Inverter: Yes
Capacity-cooling: 5 kW Energy star rating-cooling: 3.5
Capacity-heating: 6 kW Energy star rating-heating: 4.0

Dimension (HxWxD mm):Indoor 1055*299*215

Dimension (HxWxD mm):Outdoor 880*798*310
In the box: Indoor unit, outdoor unit, remote WiFi: Yes, embedded
Warranty: 5 years


Documents: Samsung GEO wall mounted split system.pdf Samsung GEO WindFree User Manual.pdf

Feature

Wind-FreeTM Cooling

Stay comfortably cool with minimal direct wind.

*Applicable for Wind-FreeTM models only

AI Auto Cooling

Automatically optimises your cooling setting by analysing your usage pattern.

ECO Mode

Helping you to save energy.

Wind-FreeTM Good Sleep

Enjoy the right temperature with Wind-FreeTM Cooling to help you to sleep more comfortably.

*Applicable for Wind-FreeTM models only

Fast Cooling

Cools 43% faster* – designed to help you stay cool.

Digital Inverter Boost

Digital Inverter Boost technology gives you an energy saving of up to 75%.*

Temperature Display

A numerical and intuitive icon displays temperature and key operating functions.

Usage

Displays energy consumption (0.1-99kWh) for the usage for the time the unit is turned ON to the time the unit is turned OFF.

SmartThings

Enjoy remote connectivity with the Samsung SmartThings app.*

*Applicable for Wind-FreeTM models only

Display Off

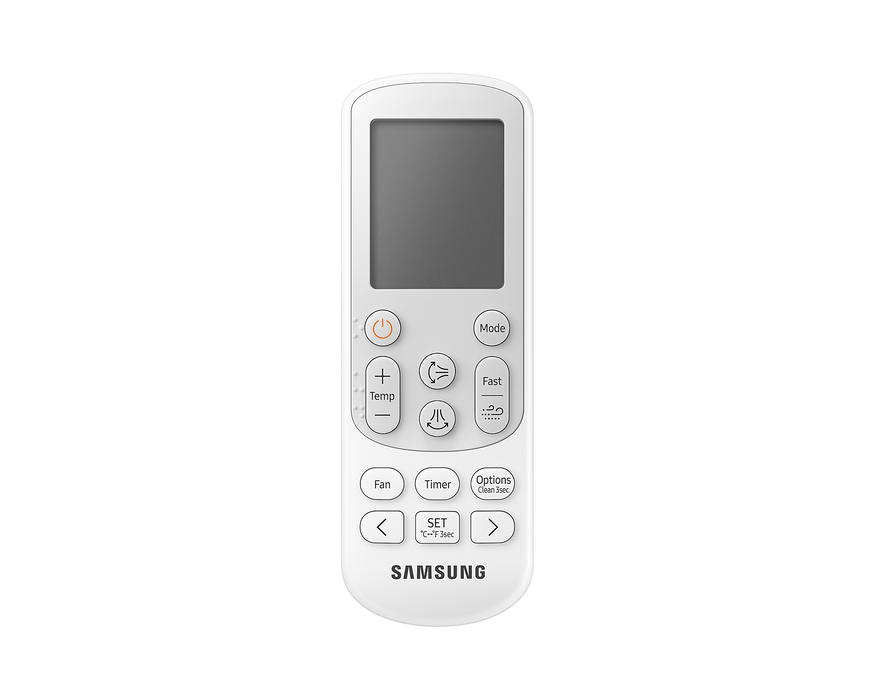

Display lighting can be turned off using the remote controller.

Tri-Care Filter

Designed to help keep your air hygienic by capturing dust, bacteria, virus, and allergens.

*Applicable for Wind-FreeTM models only

5 Year Warranty

Auto Clean

This feature helps to keep the inside of the indoor unit dry and clean.

Easy Filter Plus

Easy-to-clean filter.

Specification

Model AR18TXEABWKNSA / AR18TXEABWKXSA
Cooling Capacity (Min.-Rated-Max.) kW 2.4 / 5.0 / 7.5
Current Input (Min.-Rated-Max.) A 2.5 / 5.6 / 10.0
AEER/EER 4.03/4.07
Star Rating (Cooling) 3.5
Sound Pressure Level H/L (dB) 42 / 25
Air Volume (IN) (L/s) 273/252/220/188
Heating Capacity (Min.-Rated-Max.) kW 2.2 / 6.0 / 11.0
Current Input (Min.-Rated-Max.) A 2.2 / 6.4 / 15.4
ACOP/COP 4.25/4.29
Star Rating (Heating) 4
Sound Pressure Level (dB) 42/25
Air Volume (IN) (L/s) 273/252/220/188
Indoor Dimensions (HxWxD) mm 1055 x 299 x 215
Weight (Indoor) 12.5 kg

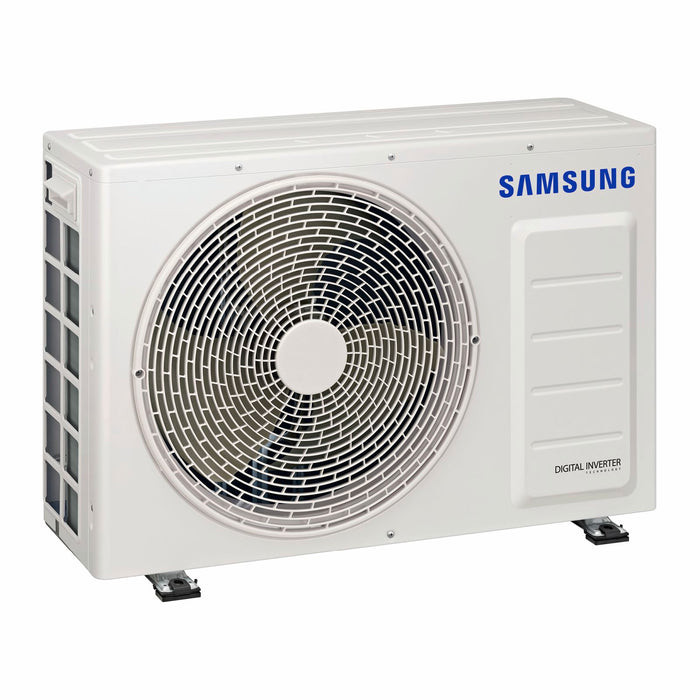

Outdoor Dimensions (HxWxD) mm 880 x 798 x 310
Weight (Outdoor) 54.2 kg
Breaker Size (A) 25
Operating Range (Outdoor) (Cool) °C -10 ~ 46
Operating Range (Outdoor) (Heat) °C -15 ~ 24

Warranty

5 year parts and labour warranty

Refer to our Warranty page
