Overview
Energy-efficient, wall mounted split system units in cooling only and reverse cycle. A stylish design, along with efficient features like Human Sensor Control and Economy mode have been combined in the Lifestyle wall mounted air conditioning range to offer user flexibility and total control around the comfort of their home.
|

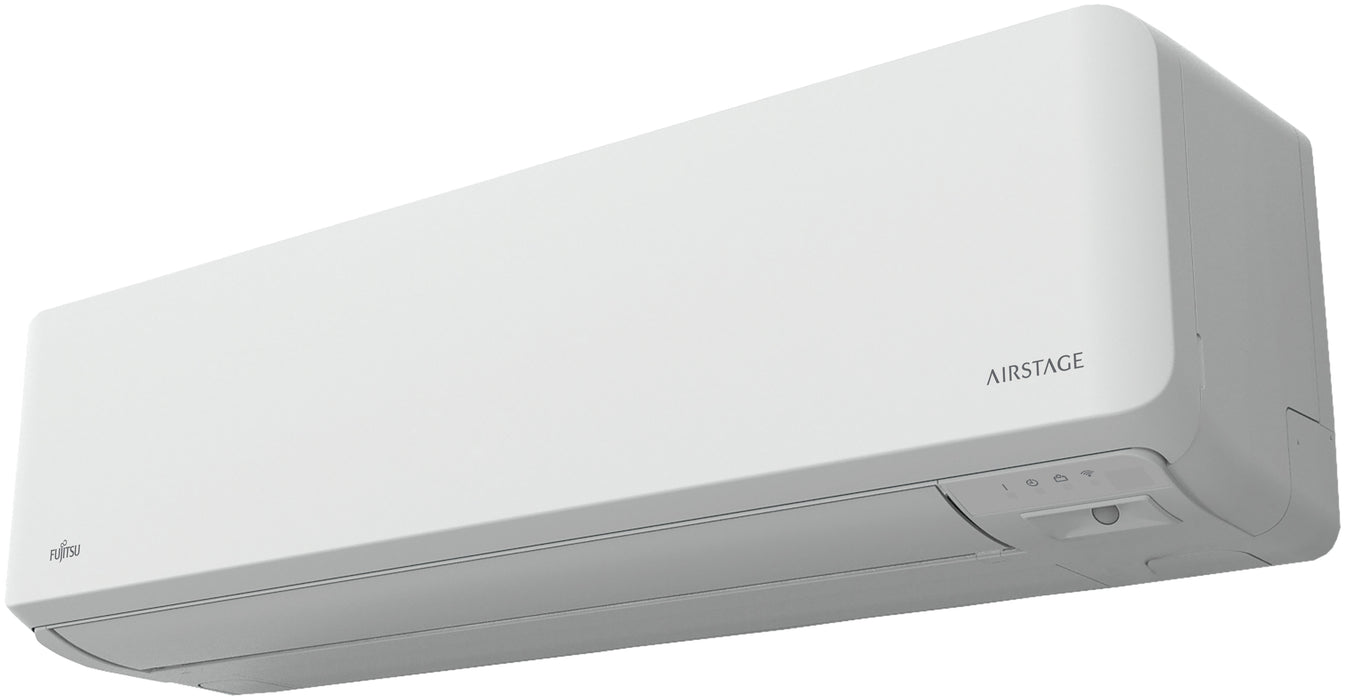

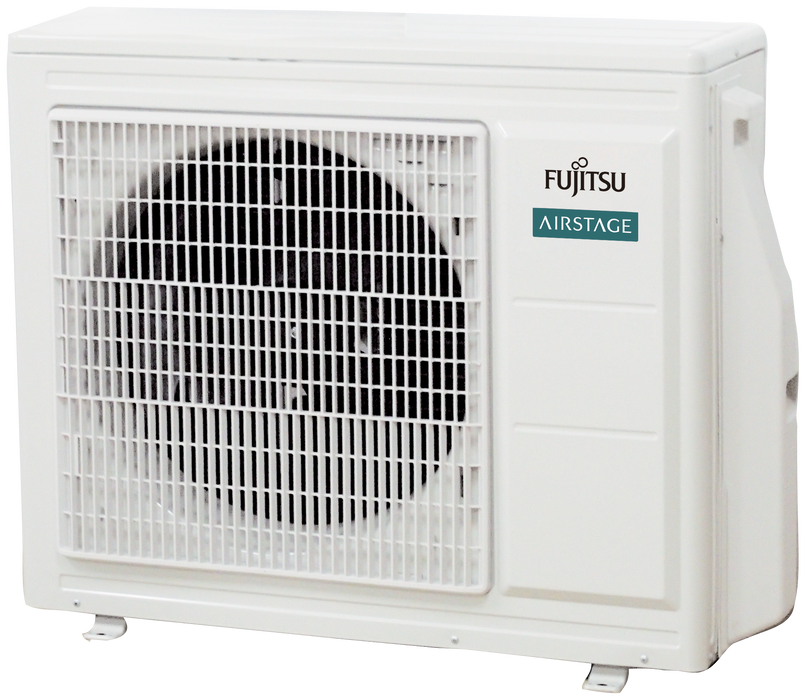

Model: ASTH22KMTD / AOTH22KMTD
|
Inverter: Yes |
|
Capacity-cooling: 6 kW
|
Energy star rating-cooling: 4.5 |
|
Capacity-heating: 7.2 kW |
Energy star rating-heating: 3
|
|
Dimension (HxWxD mm):Indoor 280*980* 240
|
Dimension (HxWxD mm):Outdoor 716*820*315
|
|
Warranty: 5 years
|
WiFi: Optional adapter needed |
|
In the box: Indoor unit, outdoor unit, wireless remote controller
|
|
Download:
NEW Fujitsu Lifestyle air conditioner Brochure.pdf User Manual.pdf
Feature
- 10º C Heat Operation
- Auto Changeover
- Auto Restart
- Auto Shut Louvre
- Automatic Air Flow Adjustment
- Automatic Louvre
- Double Swing Automatic
- Powerful Mode
- Right/Left Swing Louvre
- Up/Down Swing Louvre
- Auto-Off Timer
- Filter Sign
- Low Noise Mode
- On-Off Timer
- Program Timer
- Sleep Timer
- Super Quiet Mode
- Weekly Timer
- Demand Response
- Economy Mode
- Human Sensor
- Apple-Catechin Filter
- Long-Life Ion Deodorisation Filter
- Washable Panel
- Blue Fin Heat Exchanger
Specification
| Model No. Indoor Unit |
ASTH22KMTD |
| Model No. Outdoor Unit |
AOTH22KMTD |
| Operation Type |
Reverse Cycle |
| Power Source V / Ph / HZ |
240 / 1 / 50 |
| Capacity Cooling kW |
6.00 (1.10-7.50) |
| Capacity Heating kW |
7.20 (1.10-9.40) |
| Power input Cooling kW |
1.58 (0.24-2.72) |
| Power input Heating kW |
1.70 (0.14-2.75) |
| EER |
3.80 |
| COP |
4.24 |
| Star Rating Cooling |
4.5 |
| Star Rating Heating |
3 |
| Running Current C/H amps |
7.1 / 7.7 |
| Moisture Removal l / hr |
2.3 |
| Noise Level Cooling dBA |
48 / 29 |
| Noise Level Heating dBA |
48 / 29 |
| Air Circulation (Indoor - High Fan) C/H |
294 / 294 |
| Net Dimensions Indoor mm |
280 x 980 x 240 |
| Net Dimensions Indoor kg |
12.5 |
| Net Dimensions Outdoor mm |
716 x 820 x 315 |
| Net Dimensions Outdoor kg |
41 |
| Piping Connections (Liquid / Suction) mm |
Ø6.35 / Ø12.70 |
| Max. Pipe Length (Precharged Length) m |
30 (15) |
| Max. Height Difference m |
25 |
| Operation Range Cooling °CDB |
-10 to 50 |
| Operation Range Heating °CDB |
-15 to 24 |
| Refrigerant |
R32 |
Warranty
5 year parts and labour warranty
